pressure hydraulic test pump

Model 4D-SY(6.3-80MPa)electric hydraulic test pump is the up-to-date series product designed by the Joint Design Group for Hydraulic Test Pump of the General Machinery Research Institute under the Ministry of Machine-Building Industry. It features high level of Mechanization, Electrification and Automation, long service life, stable performance, flexibility and lightweight that the previous products have, additionally, a drive unit and cross-like converter are added. Therefore, all the performance indicators of this series product have met the requirements; various performances become more stable and reliable with safe and easy operation and power efficiency. In its structure, an enclosed water tank is used, thereby reducing the height of the whole unit and making it more compact and attractive.

Application

Model 4D-SY(6.3-80MPa)electric hydraulic test pump is mainly used in hydrostatic test for various pressure containers, oxygen cylinder, pipe, valve and steam boiler. It is a device in the new technology of processing and high pressure source for liquids in the lab. The device is specially designed with clean water and emulsion livid of 5-60 and oil of viscosity no more than 45 mm2/s as the working media. The liquid is filled up quickly and pressure goes higher immediately when doing the testing initially. It is to reduce the testing time, has great flow volume. When the pressure is over 1.6Mpa (the pressure can be automatically adjusted lower), the flow volume is automatically reduced in order to keep the testing slow and stable. Thus the product has two flow volumes under high and low pressure, and it changes automatically. Any kind of pressure testing can be performed under the rated pressure output. Its working temperature is 5-60.

Technical Parameters

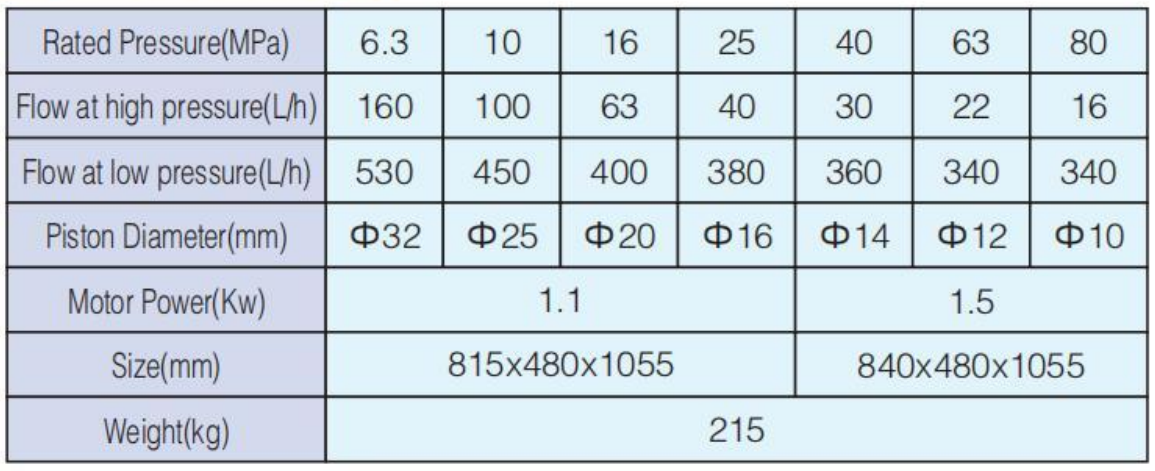

The series hydraulic test pump has seven models and its basic parameters are shown in Table 1. When selecting the hydraulic test pump, the rated pressure should be chosen based on the testing pressure needed. The flow requirement shall also be considered.
