Manual test pump
Model S-SY series manual single casing test pressure pump (hereinafter referred to as the pump) is the equipment which obtains liquid high pressure source in the test for various kinds of pressure vessels, piping, valves, steam boilers etc specially. The working media are 5oC 60oC clean water, emulsion as well as the oils with kinematic viscosity being not greater than 45 mm2/s. This series pump has 6 models.

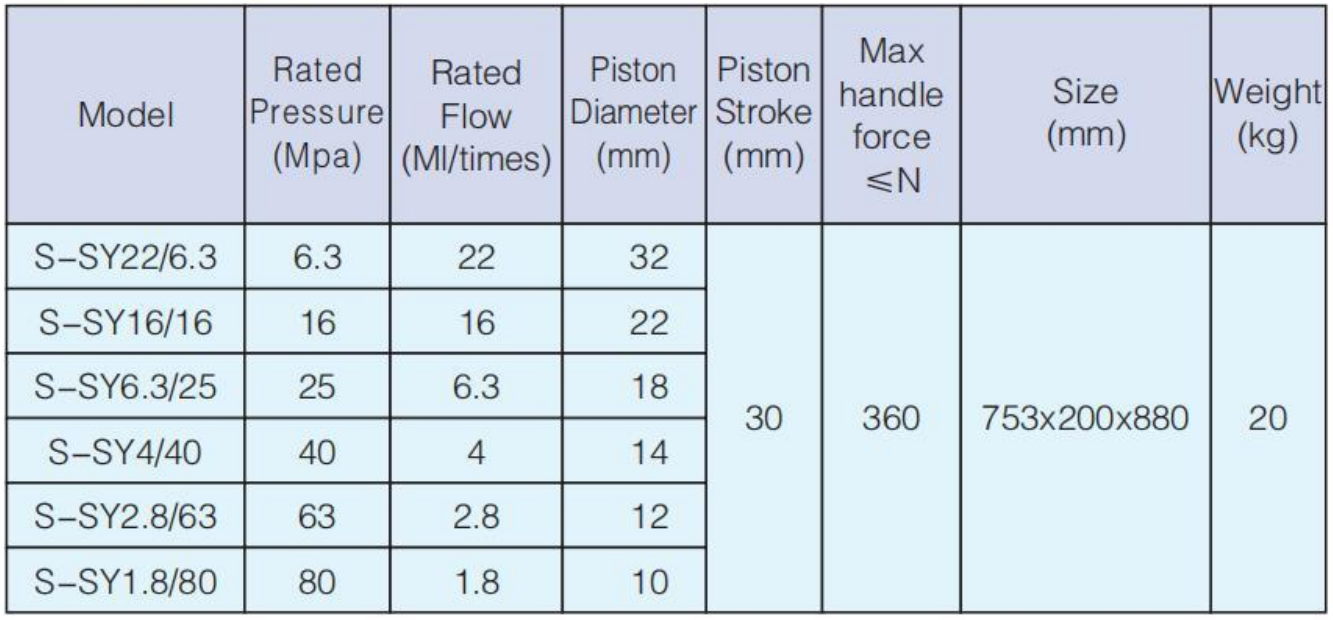

Technical Parameters
|
Model |
Rated work pressure MPa/cm2 |
Flow rate per time mL/time |
Plunger diameter mm |
Plunger travel mm |
Handle maximum exerted force Q N |
Overall dimensions L W H mm |
Weight Q Kg |
|
S-SY/6.3 |
6.3 |
22 |
32 |
30 |
360
|
753 200 880 |
20 |
|
S-SY/16 |
16 |
16 |
22 |
||||
|
S-SY/25 |
25 |
6.3 |
18 |
||||
|
S-SY/40 |
40 |
4.0 |
14 |
||||
|
S-SY/63 |
63 |
2.8 |
12 |
||||
|
S-SY/80 |
80 |
1.8 |
10 |
