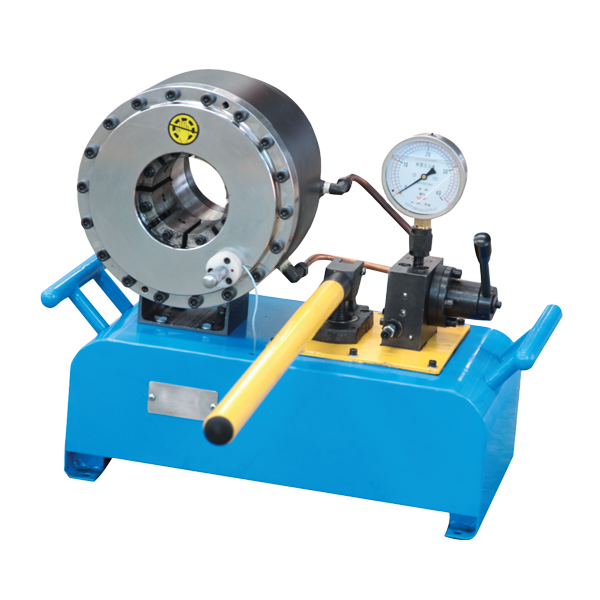

JKS-200 Manual hose crimper

JKS-200 Manual hose crimper

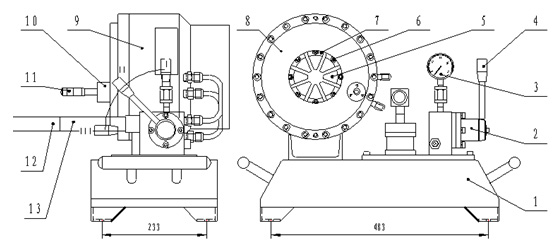

I. Simplified diagram

1. Base                               2. Directional valve      3. Pressure gauge

4. Directional valve handle    5. Mold                       6. Mold detent

7. Mold base                        8. Front cover              9. Oil cylinder

10. Scale seat                     11. Side ruler               12. Afterburning rod

13. Oil pump compression bar

II. Product's Introduction

JKS200Type Tube Locking Machine is a light portable model. Its structure is simple for easy operating, handling, and adopts super high pressure hand pump as the power source, is more suitable for field work and for production of hose assembly without power.

III. Main technical parameters

1. Specifications: JKS200

2. Buckle pressure: 260T

3. Voltage: 3V

3. Pump displacement: 30ml

4. Hydraulic oil: In Summer YB-N46

                       In Winter YB-N32

5. Pipe-shrinkage range: -6--32

6. Single Weight: 110kg

7. Volume: 630 X 400 X 460mm
