steel cylinder pressure testing machine

Test device of external water pressure measurement

The external water pressure testing machine is suitable for the external water pressure testing of various high-pressure gas cylinders. Equipment basis

Design and manufacture of GB / t9251 method for hydrostatic test of gas cylinders. Meet the requirements of regular inspection for steel cylinders of different types and specifications.

The working principle is: place the test cylinder in a special water jacket, pressurize the test cylinder with a high-pressure pump, automatically enter the pressure maintaining state after reaching the set pressure, and carry out pressure test on the test cylinder. At the same time, the volume of the cylinder expands under the test pressure, squeezing part of the water in the water jacket into the water cup of the water volume collection system, which is the volume of the test cylinder The deformation is transmitted to the industrial computer through the water quantity collection system. After the cylinder is depressurized, the elastic deformation disappears, so the water in the water collection system returns to the water jacket, and the unreturned water is the volume residual deformation of the tested cylinder. The percentage of volume residual deformation and total deformation is the volume residual deformation rate of gas cylinder. Through the test, the volume residual deformation rate of the gas cylinder can be accurately measured to ensure the safe use of the gas cylinder.

technical specifications

Applicable gas cylinder range: diameter: 219-425mm, length: l600-2000mm;

Test efficiency: 15-20 (80L gas cylinder as an example)

3. Test accuracy: 0.1g (expansion water volume)

4. Pressure sensor accuracy: 0.06mpa;

5. Pressure test pump: 1.5kw

6. Test environment temperature (T1): 5 C;

7. Medium temperature range (T2): T1 + 5 C;

8. Input voltage: 220V (two-phase) / 380V (three-phase);

9. Output pressure: 0-60Mpa optional;

10. Air pressure of pneumatic operation parts: 0.8MPa;

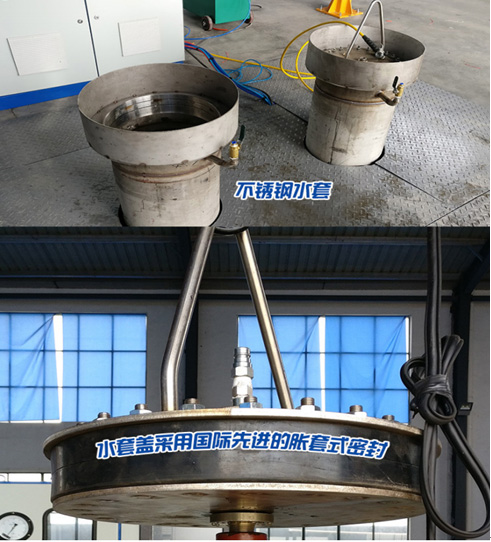

11. The water jacket cover is sealed with international advanced expansion sleeve type;

12. The thread seal adopts fast sealing mechanism and special materials;

13. The high-pressure quick connector is imported from Spain, inteva;

Large touch screen for operation and data display
